Introduction

Google Cloud Storage is an enterprise public cloud storage platform that can house large unstructured data sets.

​
MoEngage × GCS

The MoEngage and GCS integration exports campaign interaction events to your Google Cloud Storage buckets. You can then import these files into BigQuery for further processing and analysis.

​
Integration

Prerequisites
  • Ensure you have a Google Cloud Platform account with permission to create a new bucket and a service account.
  • Exports to GCS are part of the Streams add-on. Contact your dedicated MoEngage CSM (customer success manager) to enable it for your account.

​
Step 1: Create a dedicated service account for MoEngage

On your Google Cloud Platform console, go to the IAM & Admin console.
  1. From the sidebar, open Service Accounts.

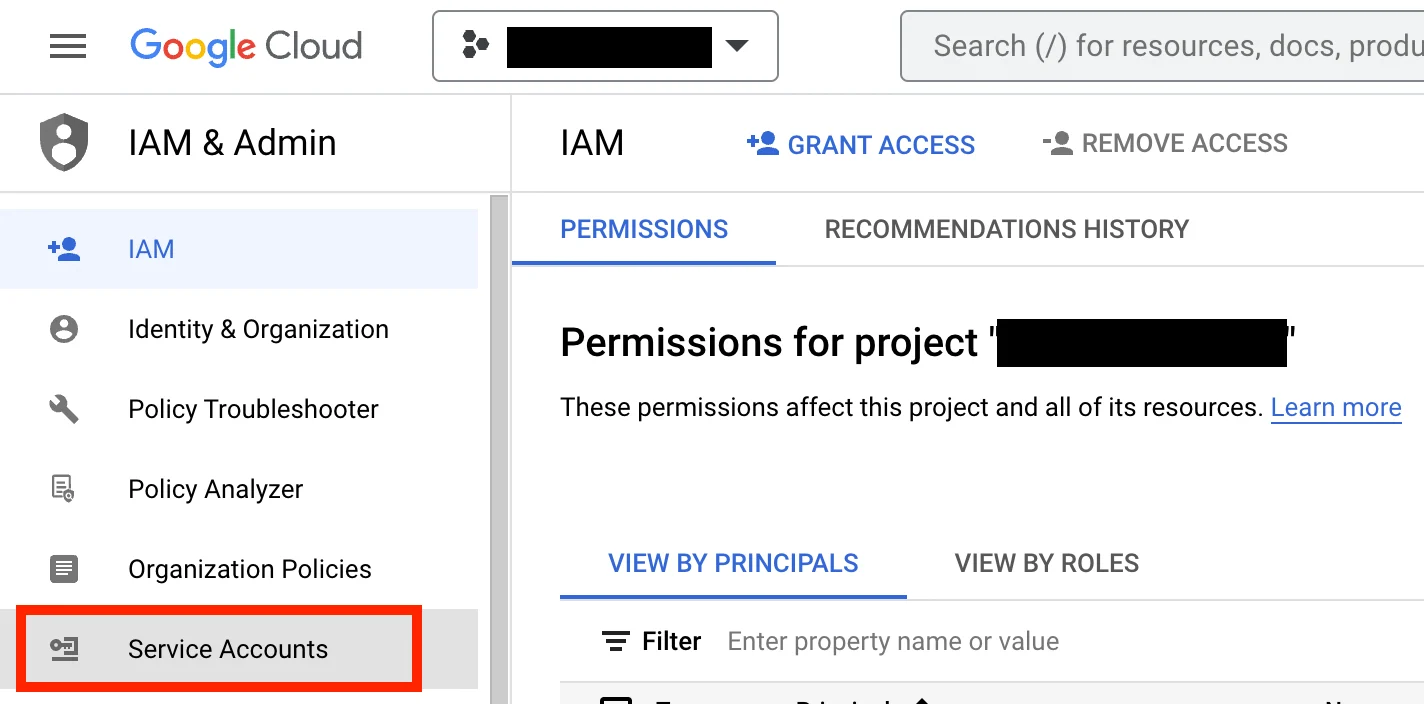

    Service Accounts home in the IAM & Admin console
  2. Click the + Create Service Account button.
  3. Give this service account a name, and an optional description.
  4. Click Create and continue.

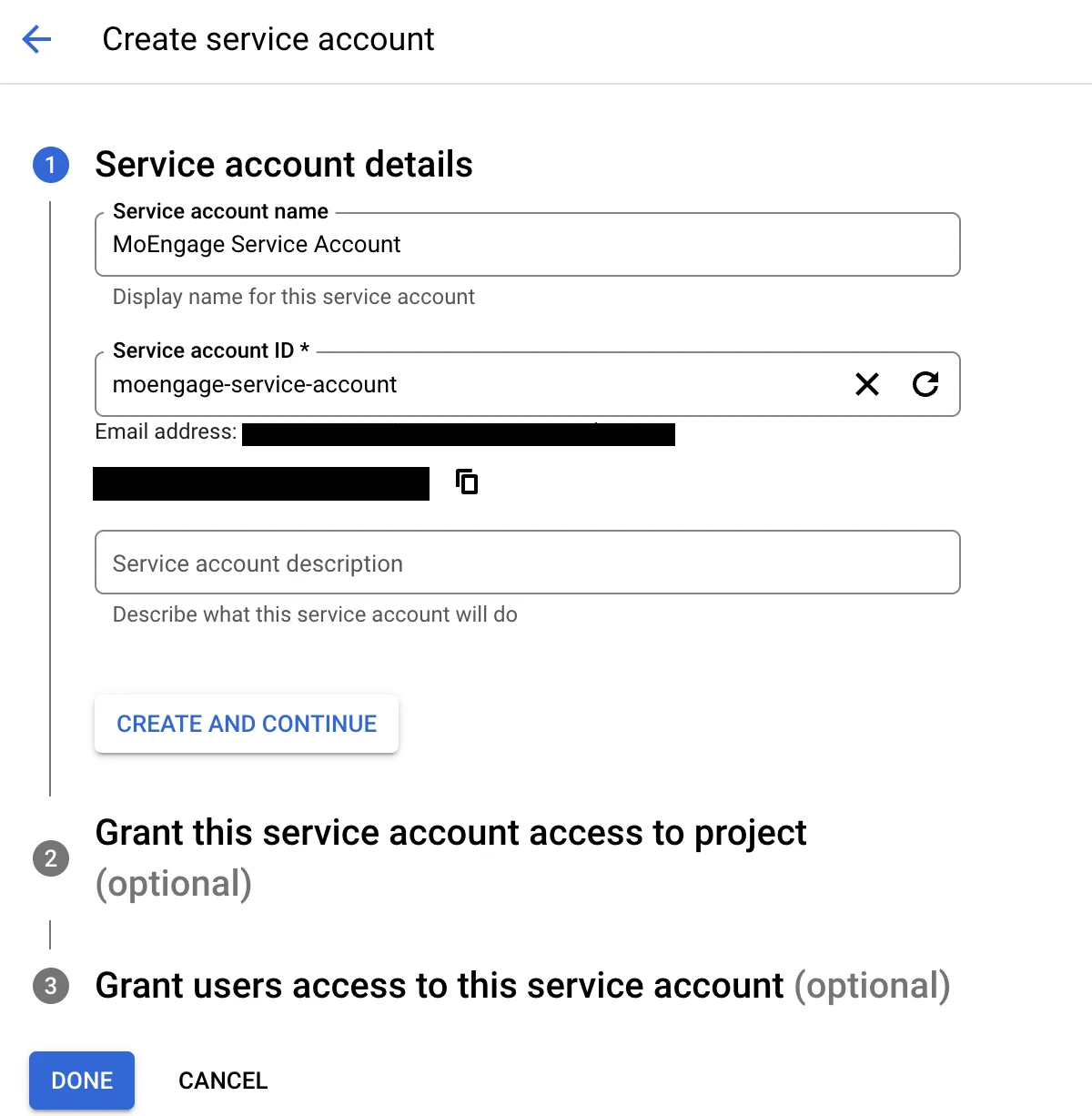

    Creating a new service account in Google Cloud
  5. Add the role Basic > Browser to this service account.

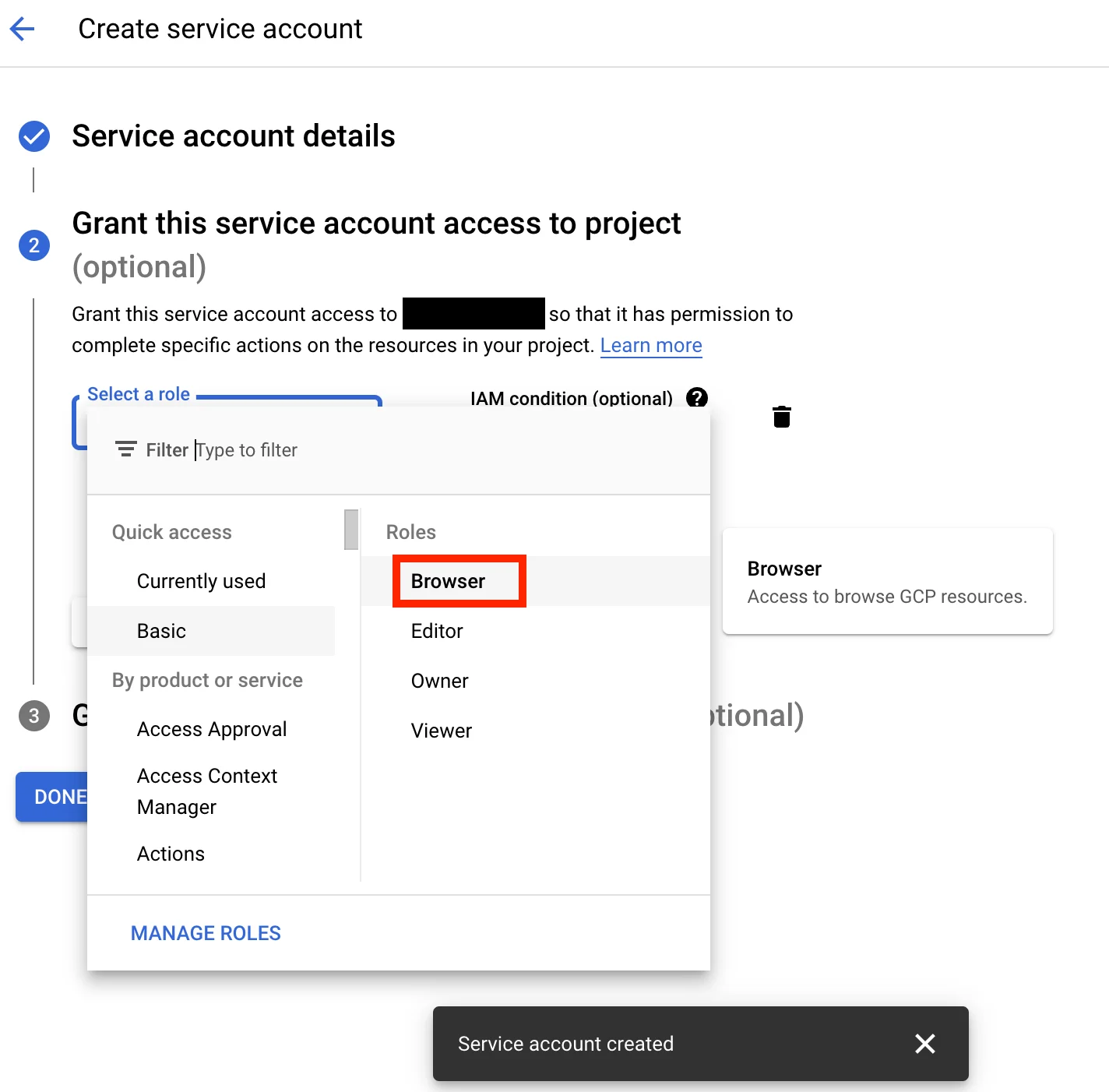

    Assigning the Basic > Browser role to the service account
  6. Click Continue. Optionally, grant users access to this service account.
  7. Click Done.
  8. Open the service account from the list of service accounts.
  9. Go to the Keys tab, click Add Key, and then select Create new key.

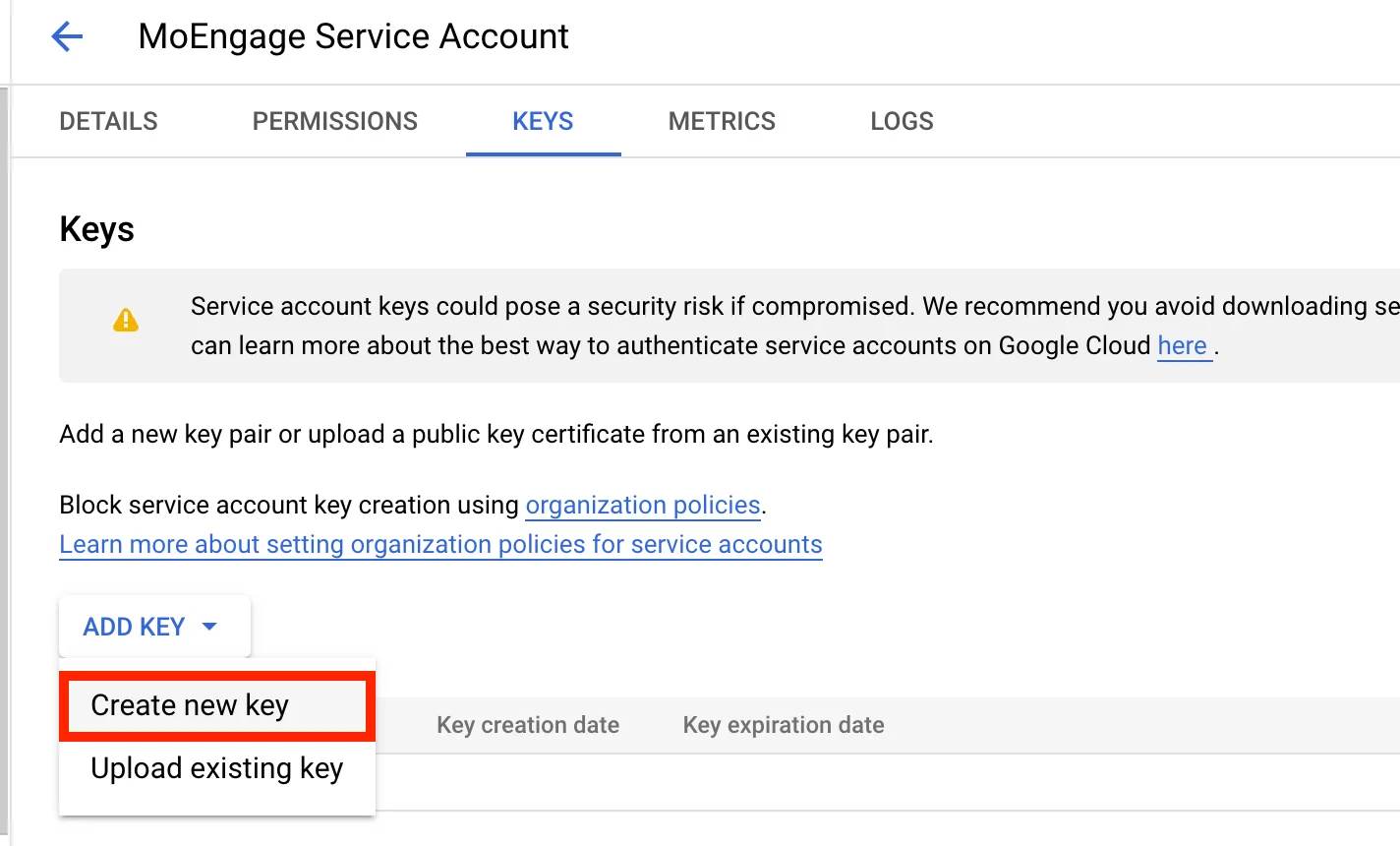

    Add Key option on the service account Keys tab
  10. Select the Key Type as JSON, and then click Create.

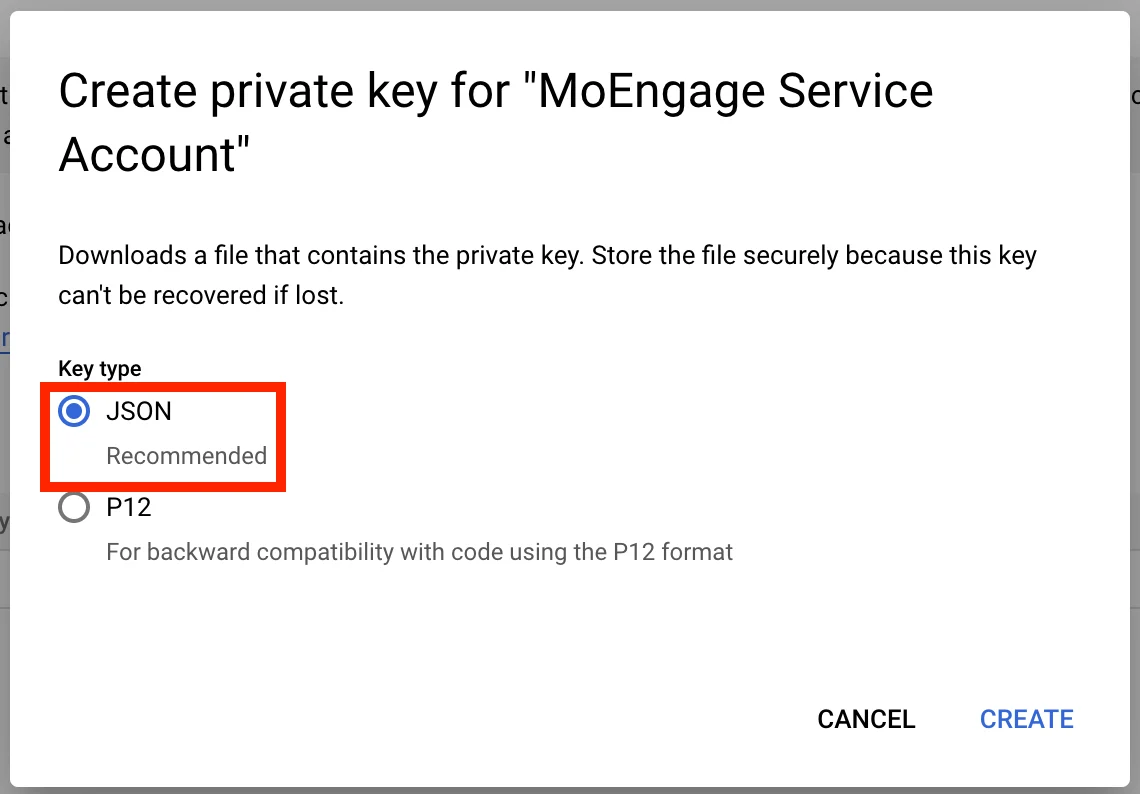

    Selecting JSON as the key type when creating a service account key
  11. Your new key is automatically downloaded in JSON format. Store this file safely. You will need to upload it later on the MoEngage dashboard.

​
Step 2: Grant this service account permissions to your bucket

  1. On your service account details page, copy the email of your service account.

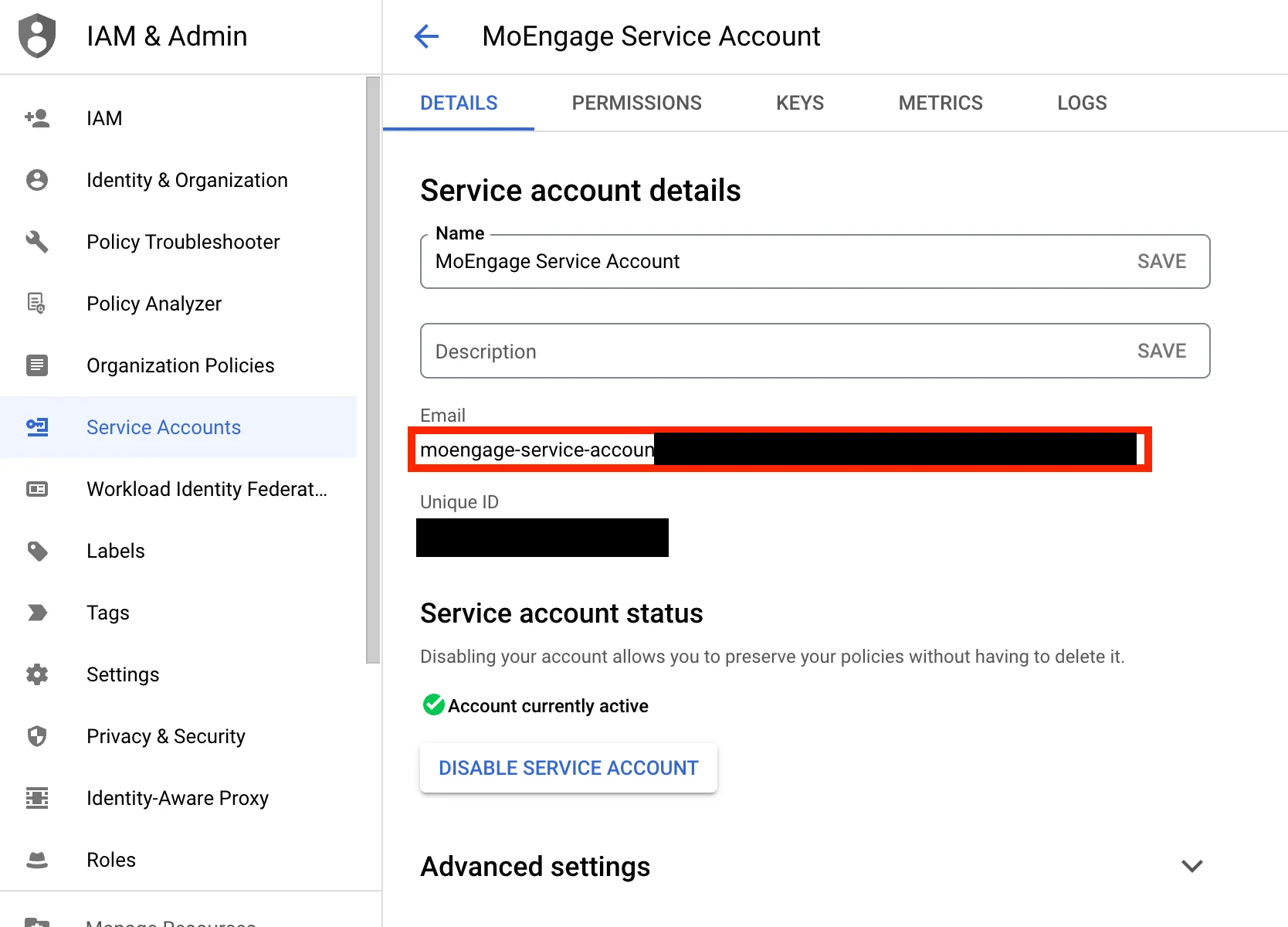

    Service account email on the details page
  2. Go to the Cloud Storage console, and open the bucket in which you want MoEngage to export the events.
  3. Under the Permissions tab, click Grant Access.

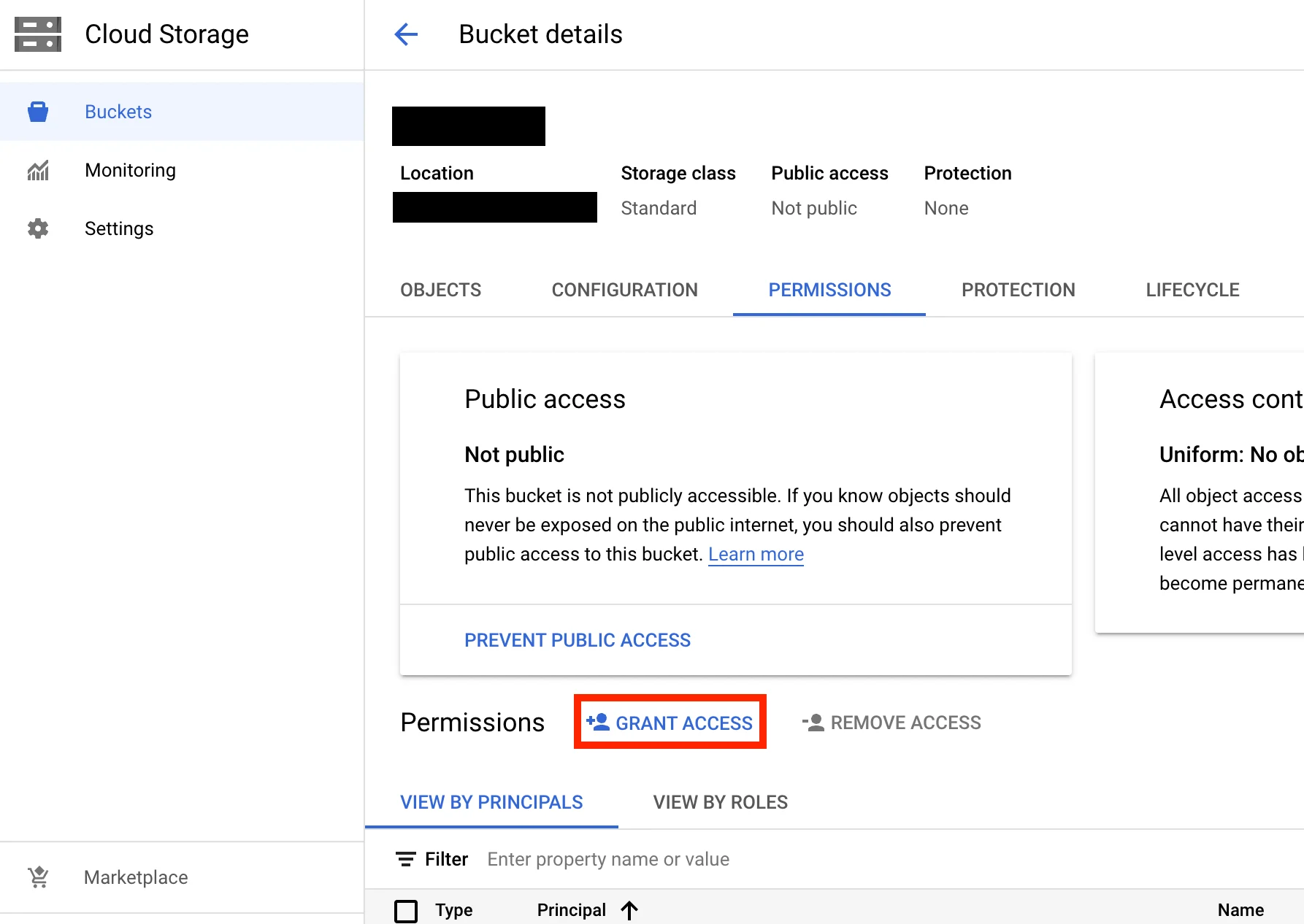

    Grant Access option on the bucket Permissions tab
  4. Paste and select the service account email in the New Principals field.
  5. Assign the role Cloud Storage > Storage Admin.

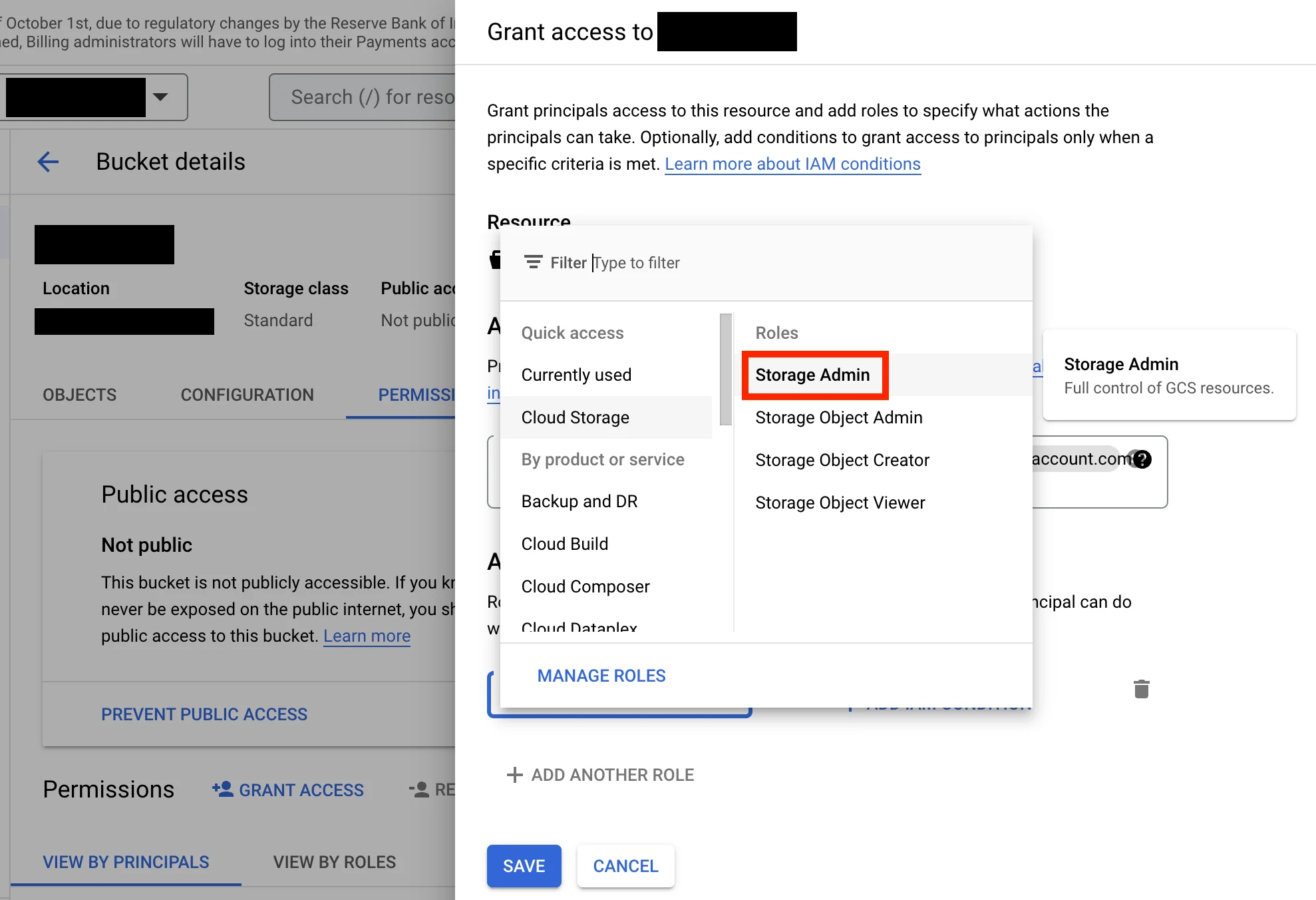

    Assigning the Storage Admin role to the service account
  6. Click Save.

​
Step 3: Enable APIs & Services in your GCP account

  1. In your GCP console, go to APIs & Services, and then click + Enable APIs and Services.

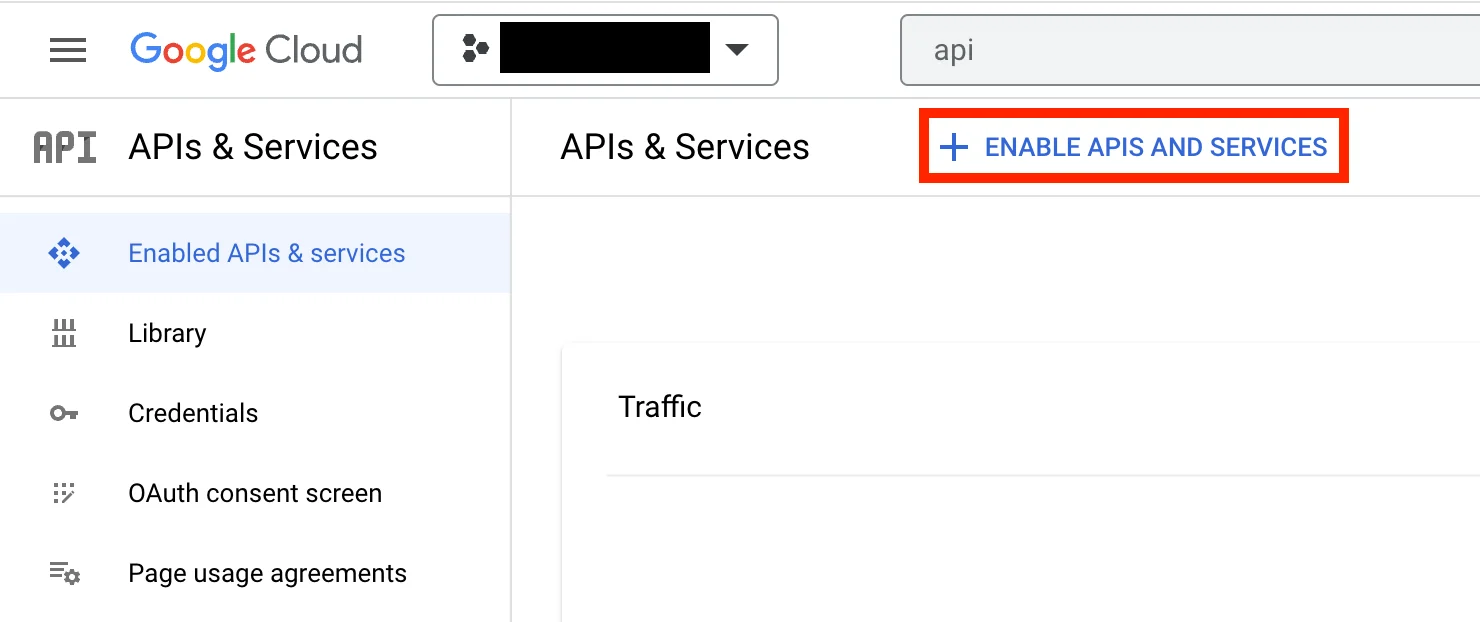

    Enable APIs and Services option in GCP console
  2. Search for Cloud Storage and open the API details page.
  3. Click Enable to enable it.

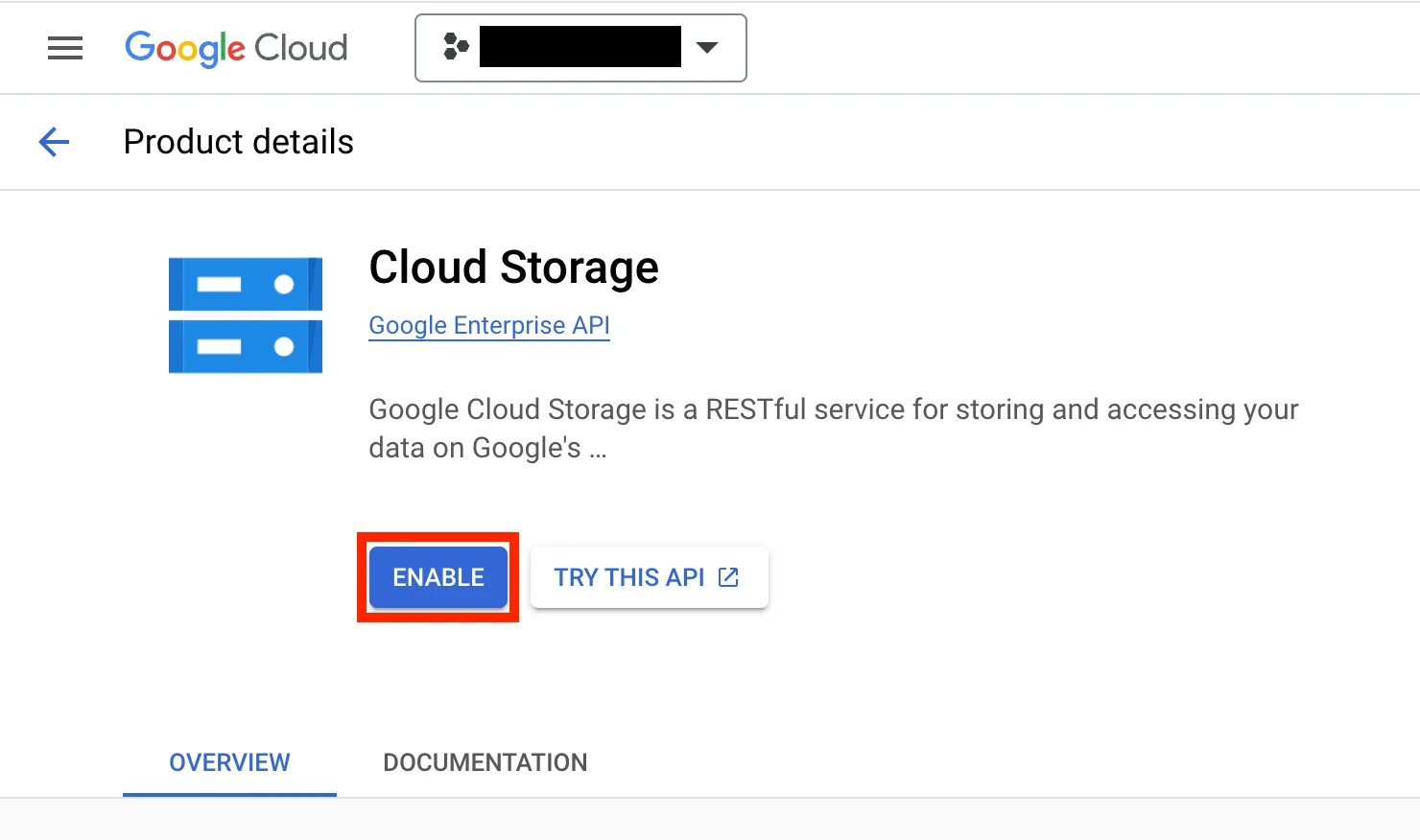

    Enabling the Cloud Storage API in GCP

​
Step 4: Set up the GCS integration on the App Marketplace

  1. On your MoEngage dashboard, go to the App Marketplace.
  2. Search for Google Cloud Storage.
  3. Go to the Integrate tab, and click + Add Integration.

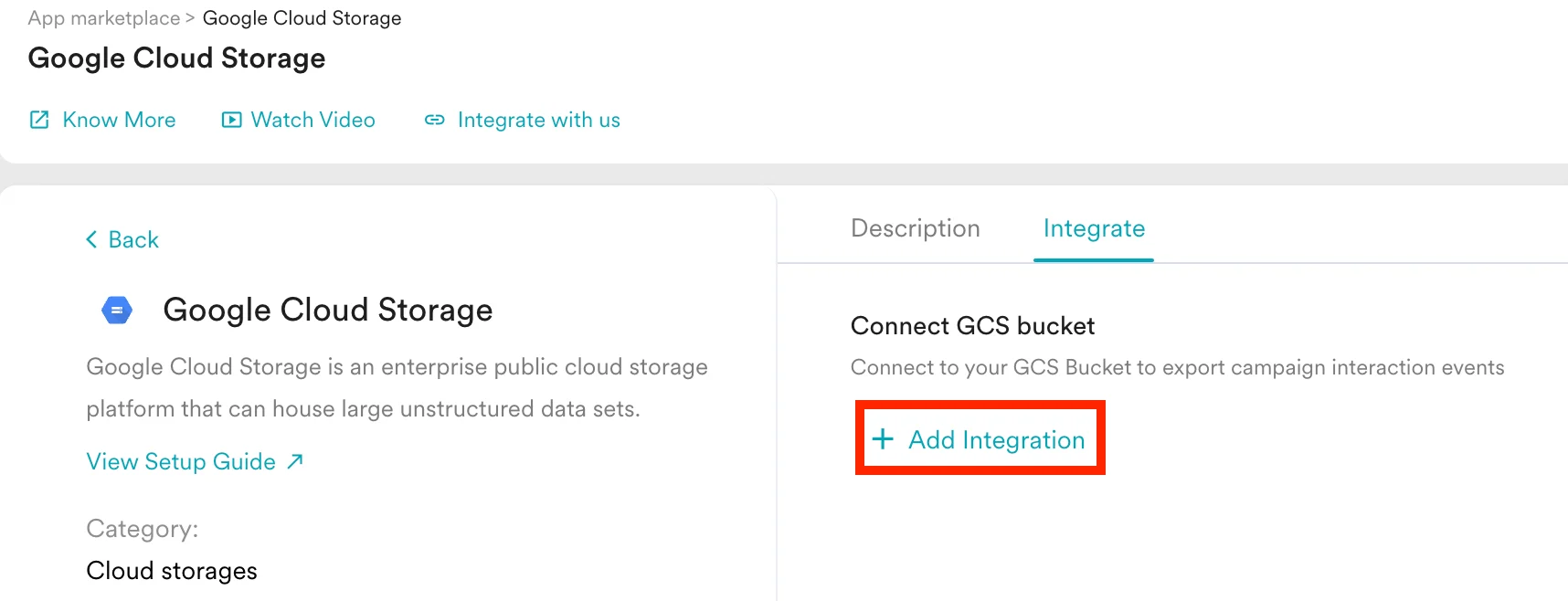

    Add Integration option on the Google Cloud Storage Integrate tab
  4. Give your connection an identifiable name.
  5. Enter your bucket name.
  6. Optionally, select your bucket region. You can find this on your Bucket Details page.
  7. Upload the service account credential JSON file that you downloaded earlier. You can verify your Client ID and Client Email upon upload.
  8. Select which events you want to export. By default, each event is exported with standard attributes.

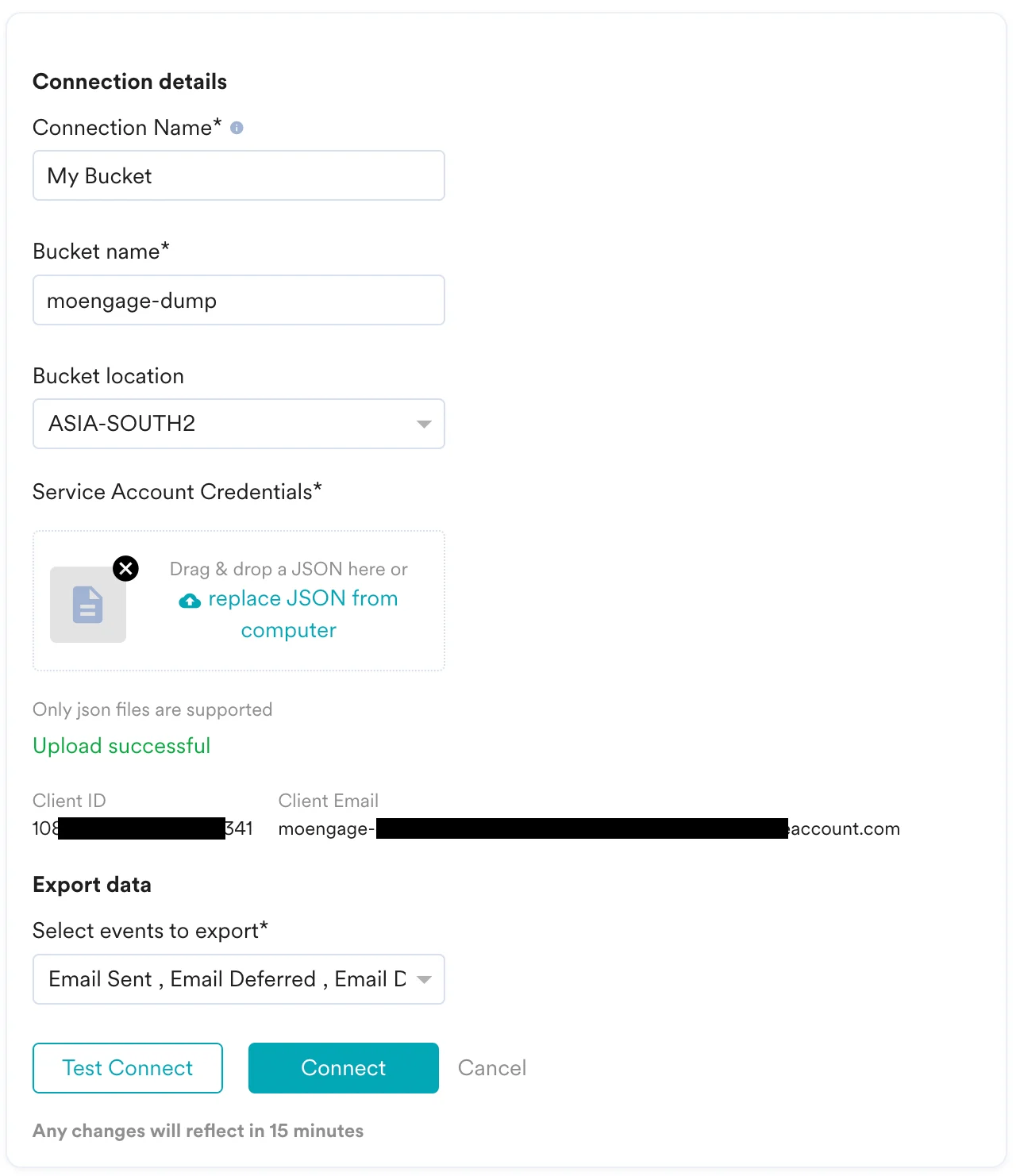

    Configuring the GCS integration on the MoEngage App Marketplace
  9. Optionally, you can test the connection. MoEngage attempts to verify whether the details you entered are correct. If there is an issue, an error is displayed that you can rectify.

​
Note on required permissions

To perform end-to-end testing, MoEngage requires a few additional permissions to be configured. If your IT policy does not allow for these permissions, you can skip them. However, you will not be able to test the connection from the App Marketplace. Skipping these optional permissions does not impact the actual data export in any way.
PermissionRequiredDescription
resourcemanagement.projects.getNoAllows the user to view metadata for a project in Google Cloud Resource Manager. MoEngage uses this permission to access your service account during testing.
resourcemanagement.projects.getIampolicyNoAllows the user to view the IAM policy for a project in Google Cloud Resource Manager. MoEngage uses this permission to check whether you have assigned the right policy to your bucket.
storage.bucket.getNoAllows the user to view metadata for a Google Cloud Storage bucket. MoEngage uses this permission to check whether the bucket that you have provided during configuration actually exists.
storage.object.createYesAllows the user to create objects (files) in a Google Cloud Storage bucket. MoEngage requires this permission to create files in your bucket.
storage.object.getYesAllows the user to read the contents of objects (files) in a Google Cloud Storage bucket. MoEngage requires this permission to verify whether the files are correctly created in your bucket.
storage.object.updateYesAllows the user to modify the contents of objects (files) in a Google Cloud Storage bucket. MoEngage requires this permission to update files in case of any discrepancies.
Feel free to create a custom role that incorporates the mandatory permissions required by MoEngage along with any optional permissions cleared by your IT policy for testing.

​
Verify if you are receiving the data correctly

MoEngage uploads files using the following path structure:
gs://<your-bucket-name>/event-exports/<your_app_name>/<connection_id>/export_day=YYYY-MM-DD/export_hour=HH/<file-name>.json.gz
Go to your bucket and verify that the files are present:
Verifying that exported files are present in the GCS bucket

​
Export Frequency

MoEngage dumps the data at hourly intervals.

​
Sample File

The exported files are in the .json.gz format. Download a sample file to inspect the structure. The exact contents will differ based on the events and attributes you opt to export.
JSON
{
  "app_name": "App Name",
  "export_hour": "6",
  "db_name": "MoEngage App Name",
  "event": {
    "uid": "user id",
    "event_type": "CAMPAIGN_EVENT",
    "event_code": "MOE_EMAIL_SENT",
    "event_name": "Email Sent",
    "user_attributes": {
      "moengage_user_id": "userid1",
      "user_attr1": "value1",
      "user_attr2": "value2"
    },
    "event_source": "MOENGAGE",
    "email_id": "[email protected]",
    "event_attributes": {
      "campaign_name": "Campaign name",
      "moe_campaign_tags": [
        "Tag1",
        "Tag2"
      ],
      "campaign_type": "GENERAL",
      "moe_campaign_channel": "Email",
      "moe_delivery_type": "One Time",
      "campaign_id": "moengage campaign id",
      "campaign_channel": "EMAIL"
    },
    "event_uuid": "3b918064-08dc-47ae-b674-c23797475a8d",
    "event_time": 1653022310,
    "device_attributes": {
      "moengage_device_id": "device id if applicable"
    }
  },
  "export_day": "2022-05-20"
}
For a list of supported events and attributes, refer to our Data Export Glossary.

​
Frequently Asked Questions

It typically takes up to 30 minutes for the automated data exports to be set up for your account and for you to start seeing data.
Yes. If you need to export new events at a later time, you can edit your configuration on the App Marketplace and add the new events to your exports.
You cannot export historical data using Automated Data Exports. Once configured, you will start seeing data for each event from the time you enabled your exports.
If your billing plan does not cover this already and you need to enable it later, you will need to work with your Customer Success Manager to include it in your billing plan. Based on the volume of data MoEngage places in your data warehouse, partner, or API destination each month, this could lead to additional charges.
No, Data Exports is primarily built to export your Events in near real-time and user attributes in MoEngage are updated asynchronously so it is currently not possible to guarantee the latest values of user attributes in the exports.
